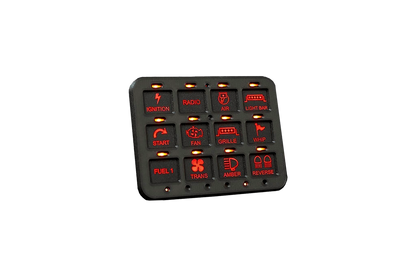

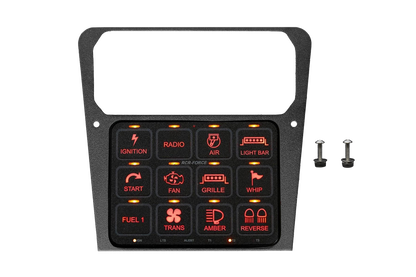

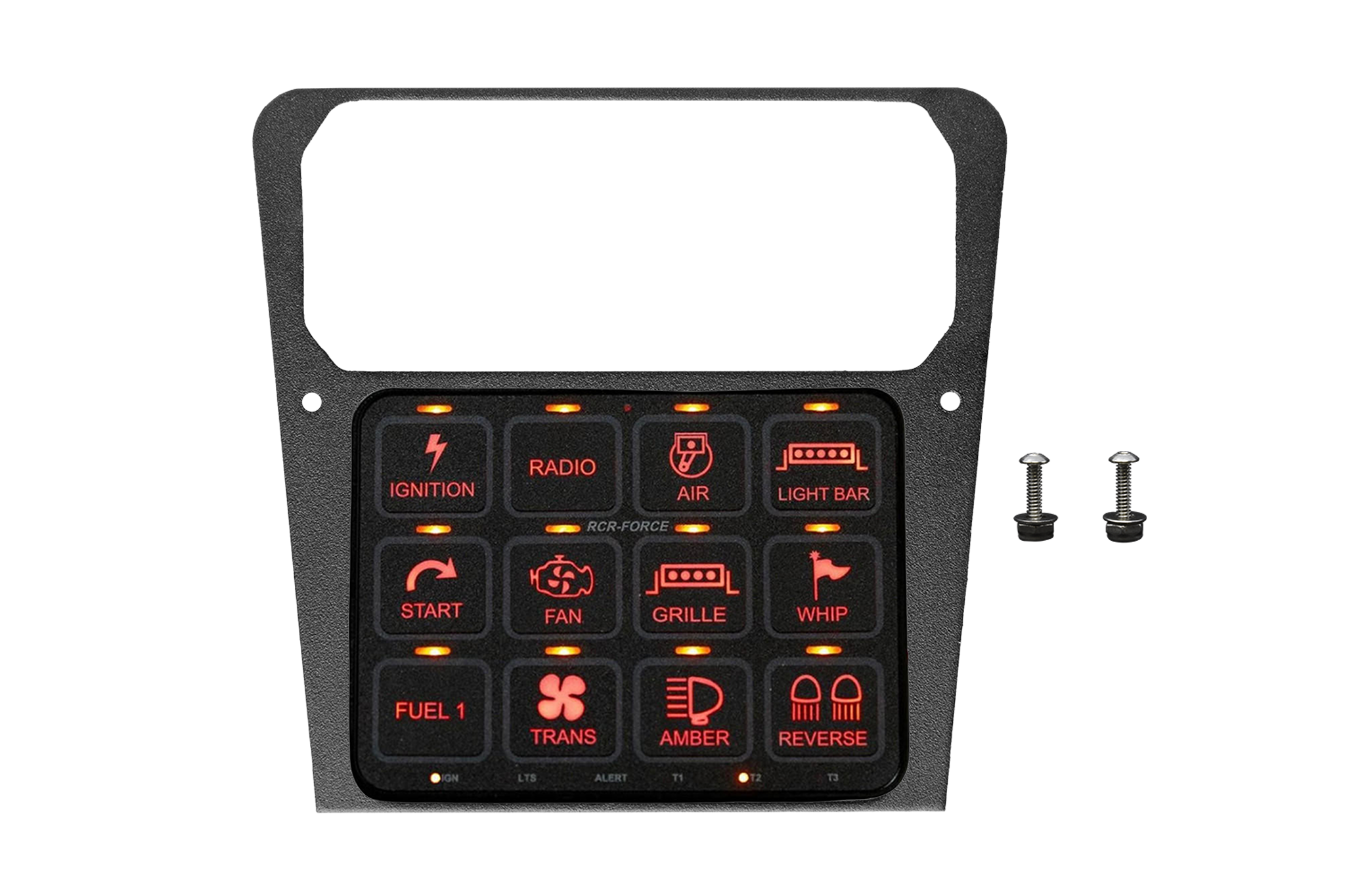

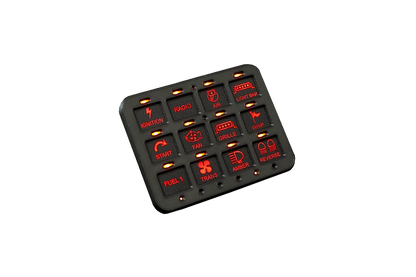

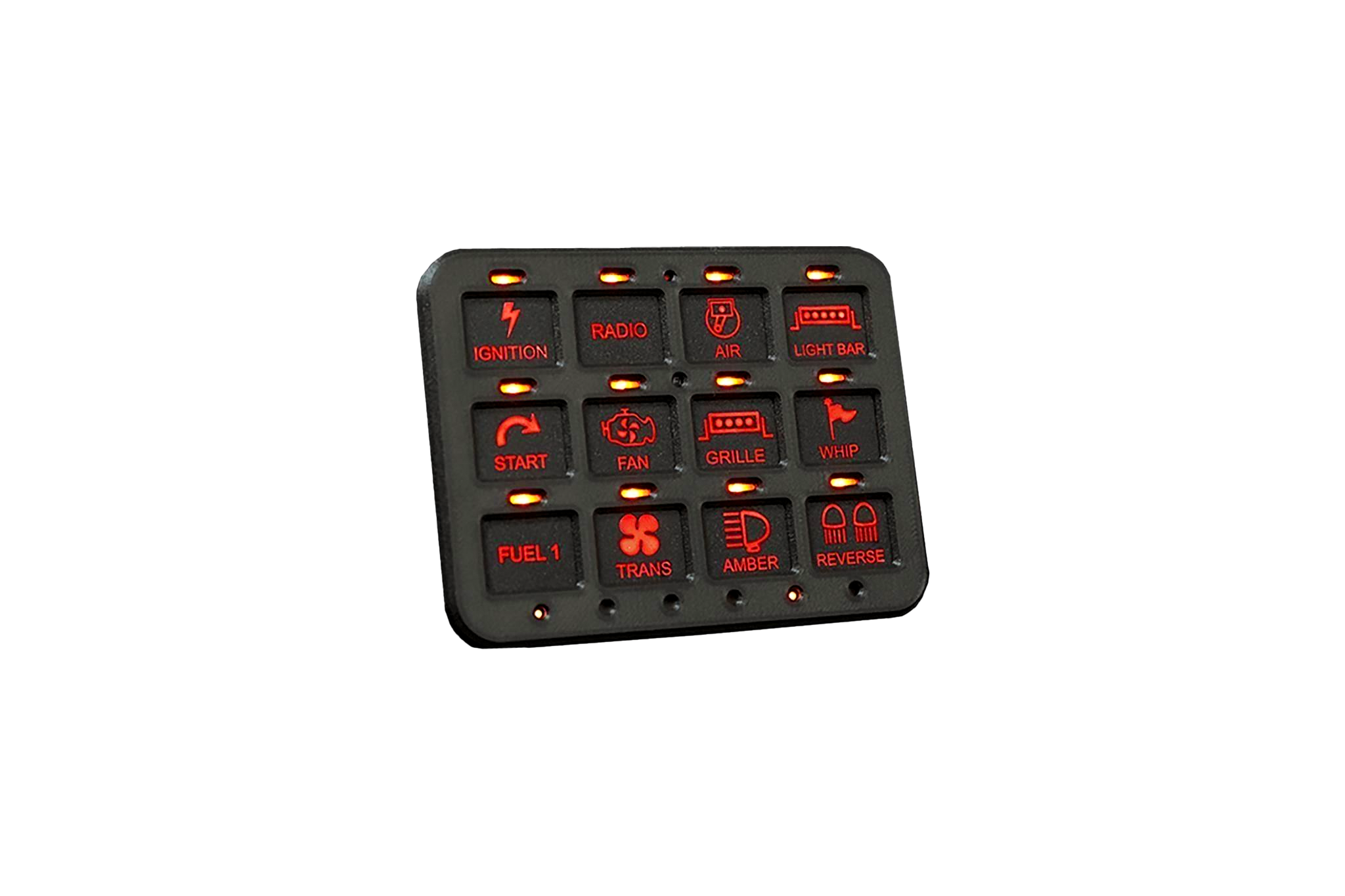

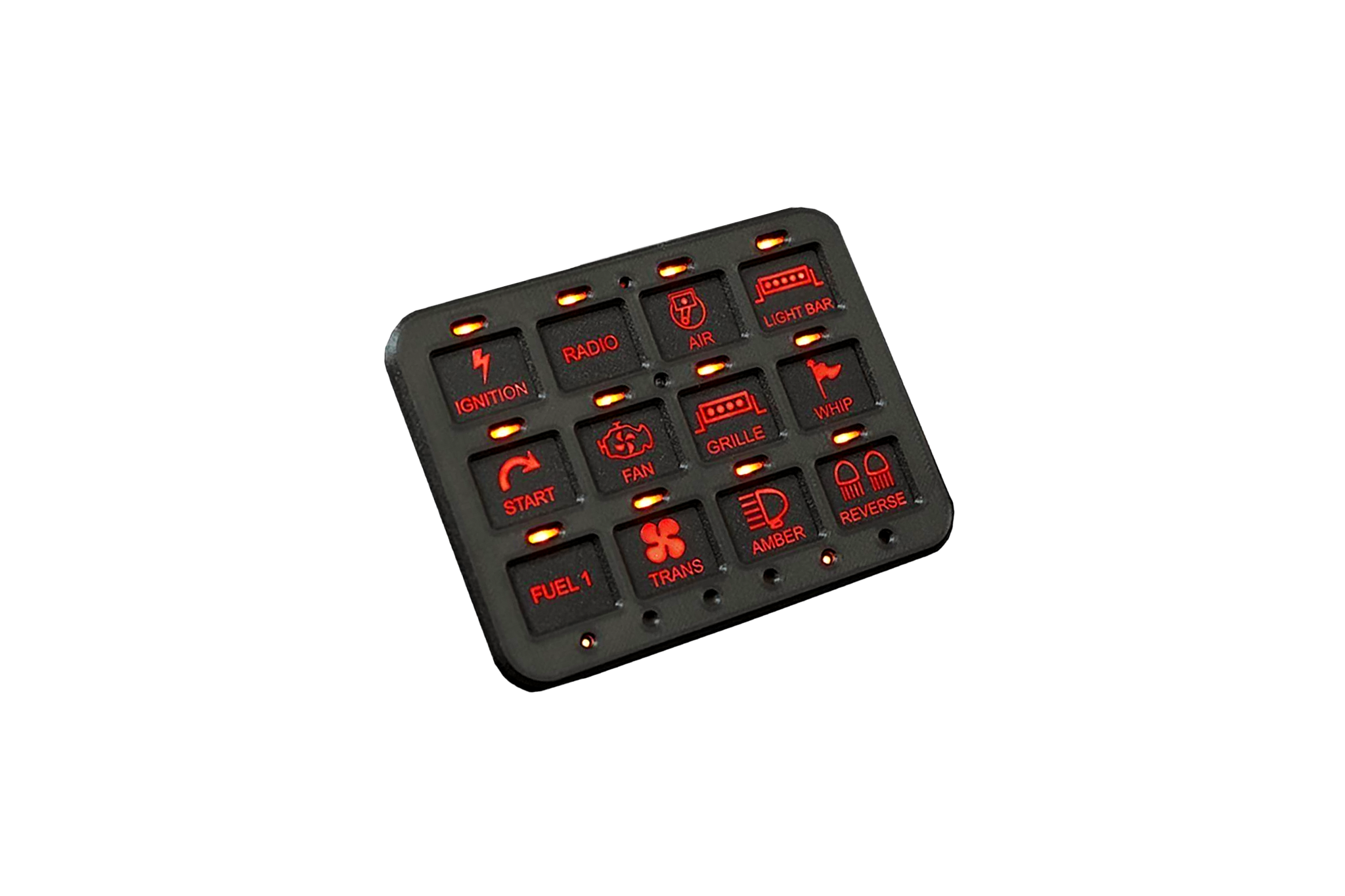

Switch-Pros® RCR-FORCE® 12 Switch Panel Power System

• 12 user-programmable switches
• RCR-TOUCH™ switch cover
• Waterproof, solid state power module
• 150amp capacity with 17 outputs
  • 4 rated @ 35A and 1 rated @ 30A
    (High In-Rush circuits)
  • 11 rated @ 15A, which can be combined for larger loads
  • 1 Low Side driver switch, rated @ 2A
• Built-in Bluetooth module
• Program and operate accessories with phone or tablet
• System can be used to start vehicle

Switch Panel Specs:

• RCR-Touch™ cover, snaps on for ease of specific switch selection while wearing gloves or riding rough terrain
• Switch Panel enclosure measures
  4” L x 3” W x .375” H
• Splash proof with Polycarbonate overlay faceplate
• Pre-machined for factory- look installation
• RGB backlighting
• Orange LED switch indicators
• 6 Programmable LED Status indicators

Power Module Specs:

• 17 Outputs: 4 rated @ 35A, 1 rated @ 30A, 11 rated @15A, 1 Low Side rated @ 2A
• 150A maximum rating
• 7”L x 3.5”W x .5”H (excluding connectors)
• Waterproof and Solid State
• Under hood rated 125° to -40°C
• LED Ignition Input Status Indicator

Kit Also Includes:

• 11’ of Communication Cable between Switch Panel and Power Module
• Power Cable with 150A inline Circuit protection
• 100 User Selectable Legends included (Horizontal orientation)

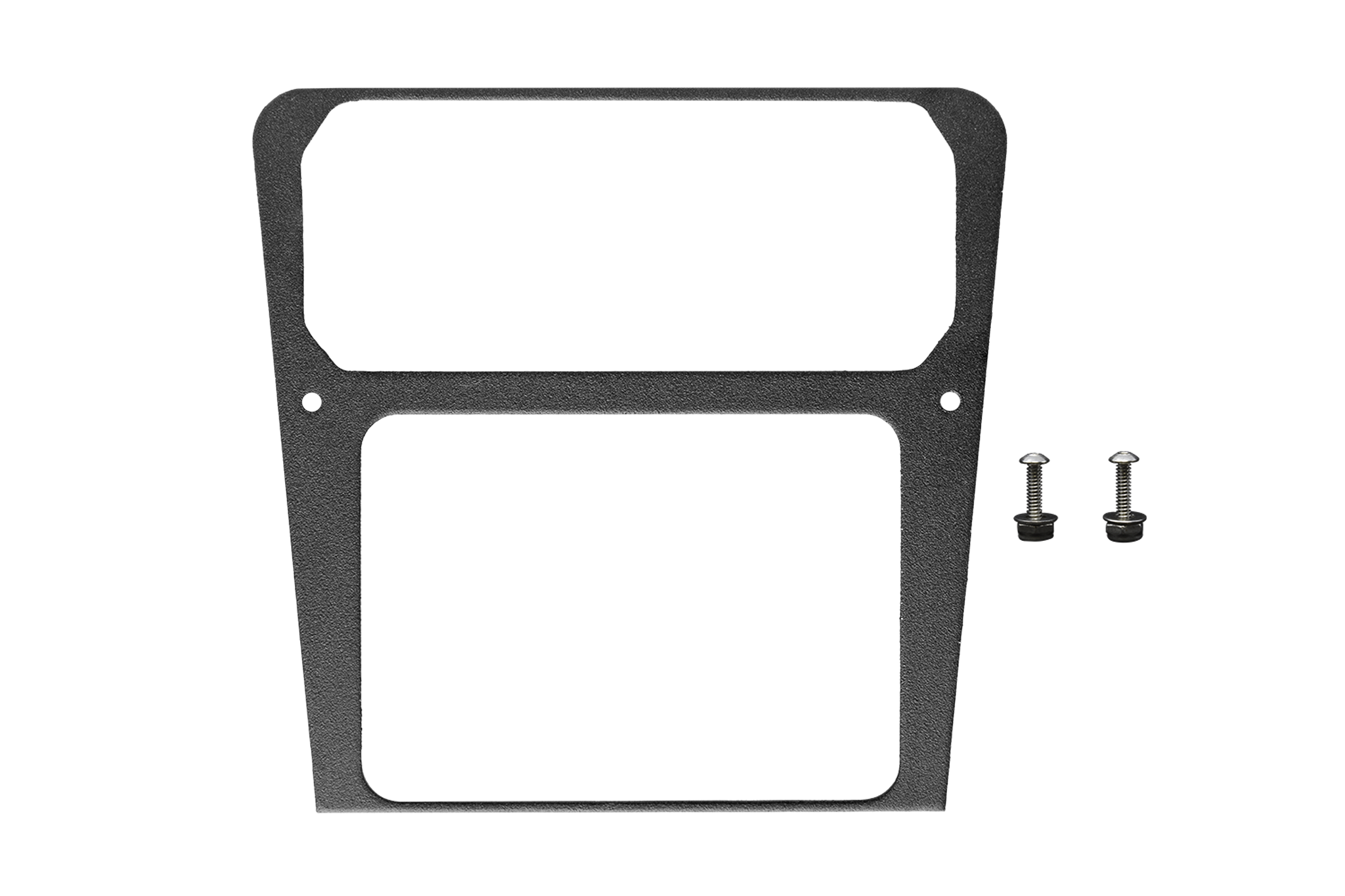

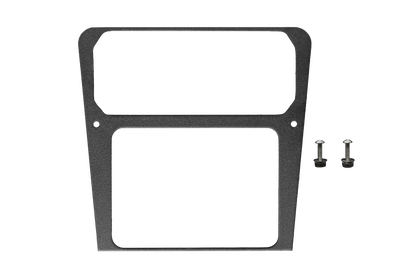

• Installation brackets and hardware
• Color Coded Output wires
• Wire harness with waterproof, sealed automotive grade connectors

Switches can be programmed to be: On/Off or Momentary, ignition or battery powered, flash, strobe, low voltage disconnect, and memorize previous settings.  There is also a programming function to adjust the brightness of backlighting and indicator LEDs.
